Advanced PCBA Functional Test Solutions

Advanced PCBA Test Solution is a highly versatile platform designed for complex electronics that require more than traditional bed-of-nails probing. Every project is uniquely engineered around the specific requirements of the client’s device under test (DUT). By utilising our proven, standardised bottom enclosures for the internal electronics and wiring, we provide a cost-effective and reliable foundation while completely customising the upper interface to match the exact physical and electrical characteristics of your product.

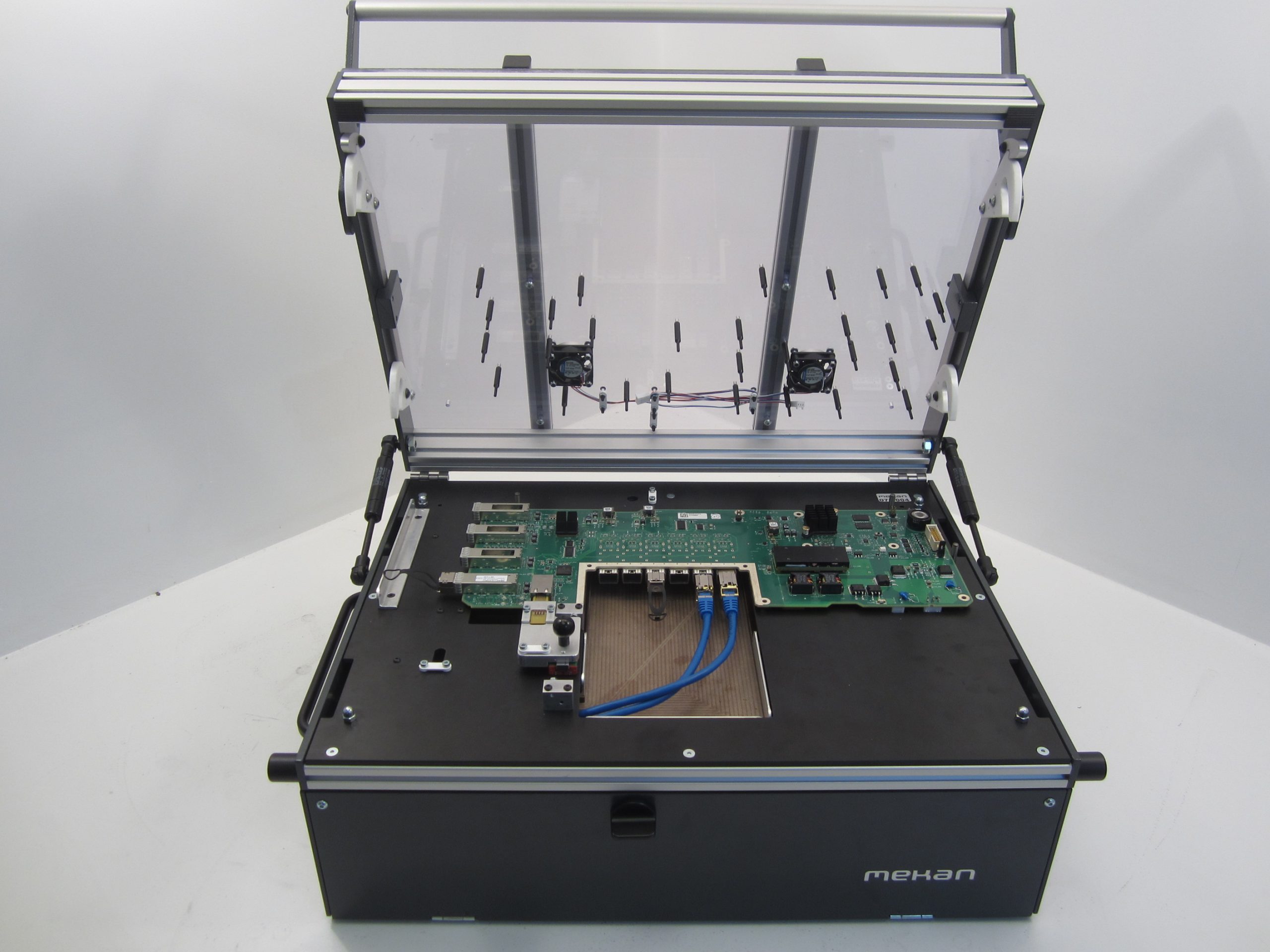

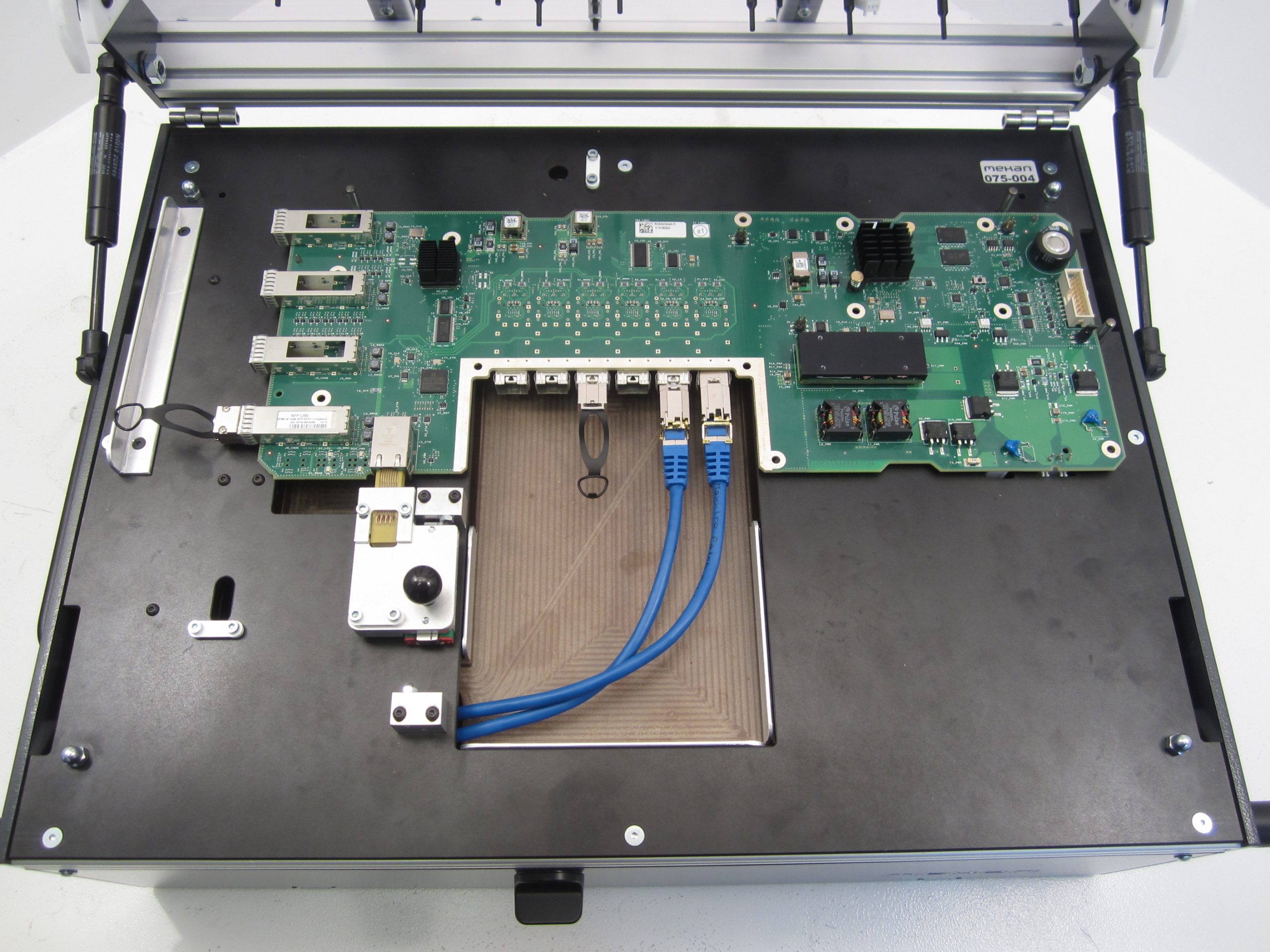

Rather than relying solely on vertical test pins, these fixtures can be engineered to interface directly with active onboard media ports, such as RJ45 Ethernet, USB, and high-speed fibre optics. The custom nature of this solution allows for complete freedom in mechanical design and system integration. A typical example of how these custom connectors and routing paths can be configured is presented in the reference images.

Key Features & Technical Highlights

• Project-Specific Customisation: Every fixture is engineered from the ground up to accommodate unique board geometries, specific component placements, and specialised connector arrays.

• Active Media Interfacing: Tailored top-side designs can integrate automated or manual mating mechanisms for RJ45, USB, HDMI, fibre optic SFP modules, and other standard or custom communication ports.

• Flexible Actuation Methods: Depending on production volume, throughput targets, and ergonomic preferences, fixtures can be configured for manual mechanical operation, pneumatic actuation, or precision electric drives.

• Standardised Foundation: Utilises our reliable standard bottom enclosures, ensuring a robust, shielded, and spacious environment for internal measurement hardware, power supplies, and complex cable management.

• Adaptable Auxiliary Features: Fixtures can be expanded to include project-specific additions such as integrated cooling fans, status indicators, safety interlocking switches, or specialised shielding layers based on your test environment.

Applications

This highly customisable platform is ideal for complex communication hardware, industrial networking switches, automotive electronic control units (ECUs), and high-frequency power electronics where full end-of-line functional testing (FCT) and physical port validation are required.
