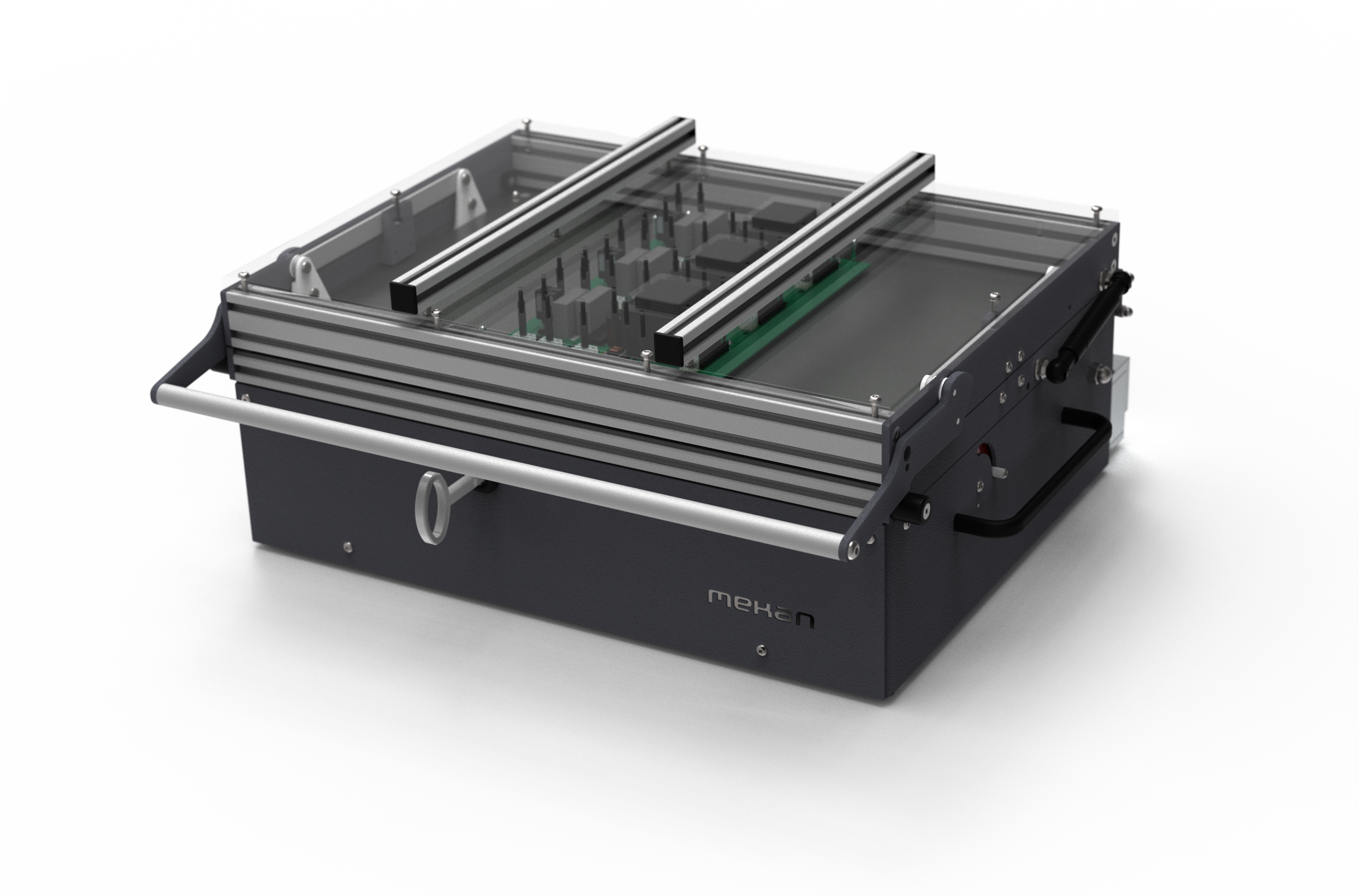

M4430 PCBA Fixture

The Columbia Mekan M4430 is a rugged, manually operated test fixture platform designed as a cost-effective, high-precision solution for electronic production facilities that do not require high-volume inline testing systems.

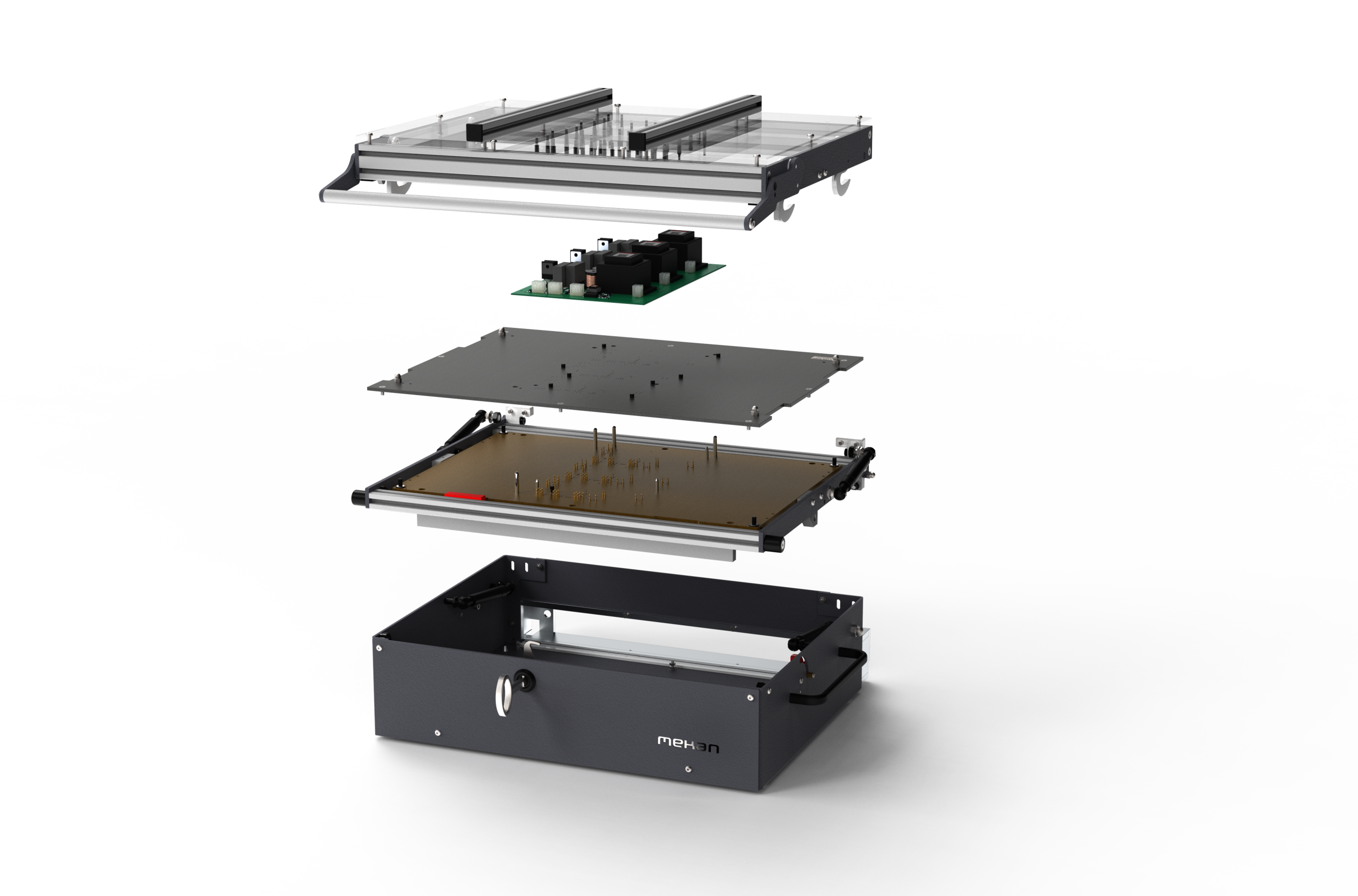

The fixture core concept is highly flexible and “LEGO-like” with a lot of possibilities and combinations. We help you configure for your actual needs.

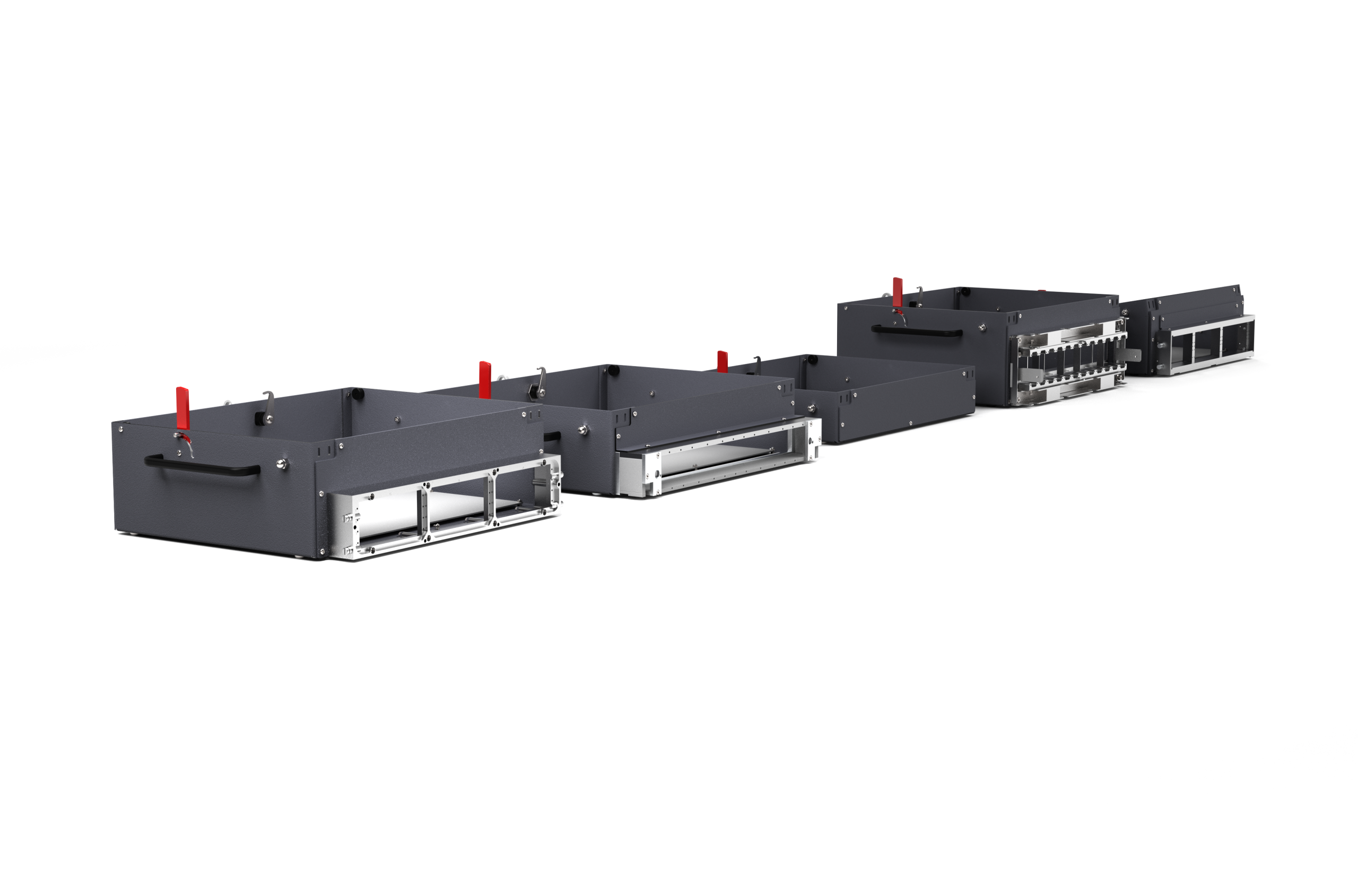

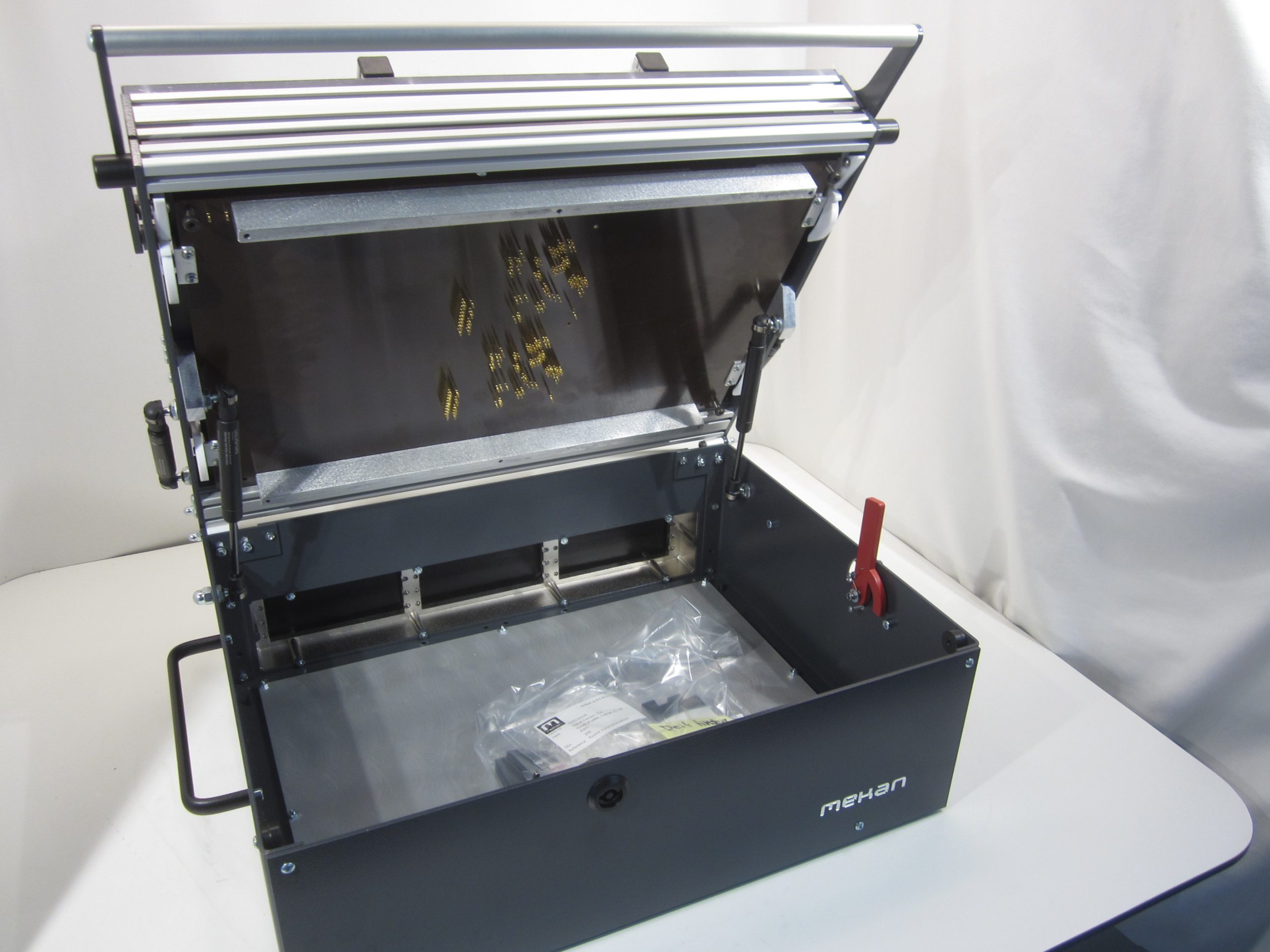

The enclosure comes as standard in four different heights and rear panel can be anything from simple connector plate to mass interconnect systems, like VPC, GenRad, ODU, Mac Titan, Ingun, etc. Inside the standard enclosure you will find dedicated TCP coated mounting aluminum plate for safe installation of your electronic devices. On the bottom enclosure you can also choose between different types of access, key lock vs twist lock, gas dampers of knee joint and other options.

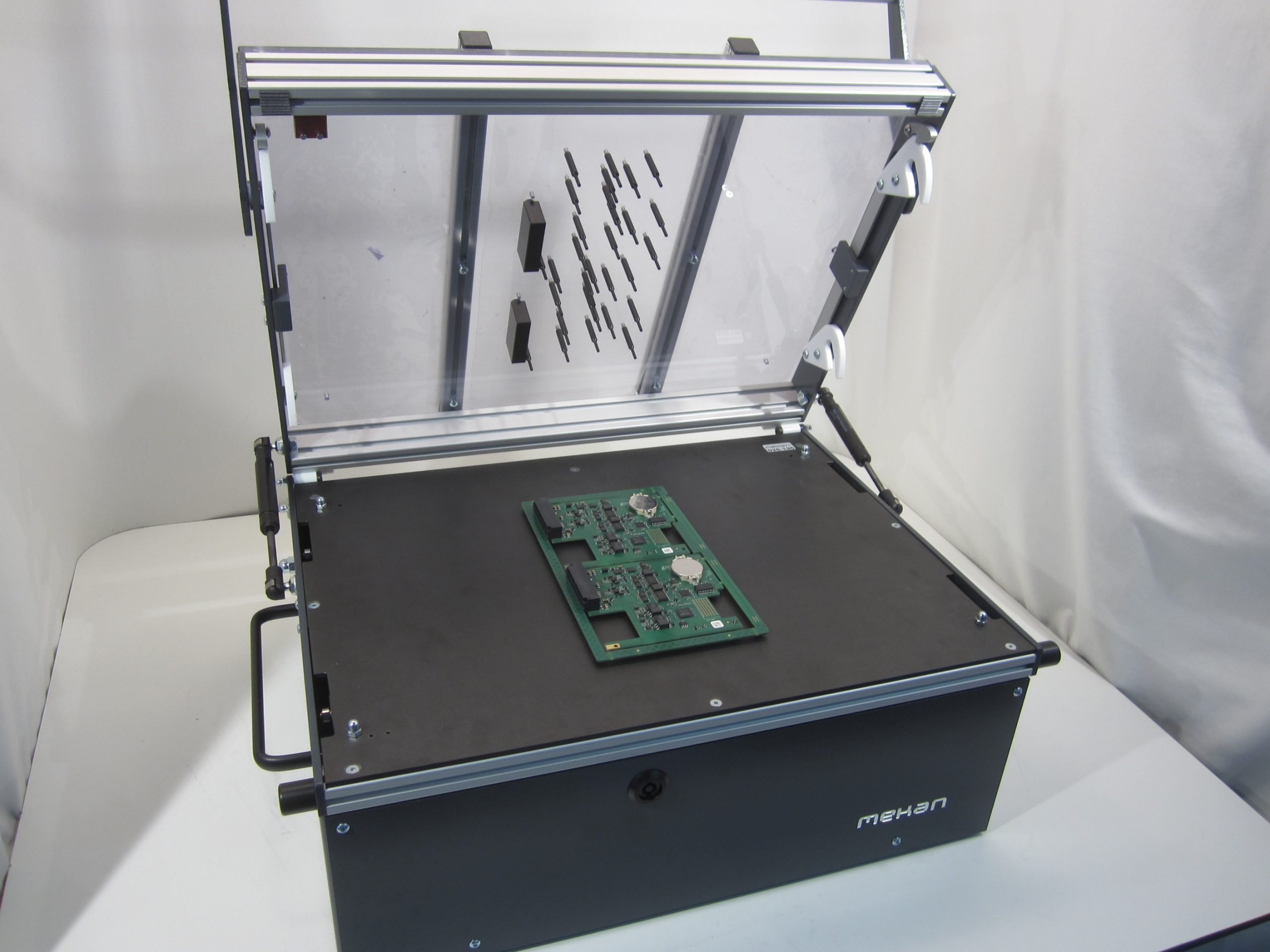

On top of the enclosure you can install various concepts. The simple is just a built plate at where you can place products and do manual connections to the DUT. On top of this you can add a safety lid with locking mechanism etc. to protect your operators. On top of the enclosure you can also add the standard PCBA tester kit which is either a single or dual well solution. In single or dual well you can continue to add features like horizontal connections to connectors and test probes from top side. And off course you can add a lot of other things during the customization like LED testing, cameras, switch button activation, heat sinks, camera´s and what ever you need in your customized fixture.

Key Features & Technical Highlights

• Fixture design with experience: The fixture design is based on decades of experience with focus on low weight, stiffness and accuracy using aluminum and clever design. The fixture is a safe enviorenment for you PCBA with materials and powder coating with ESD-properties.

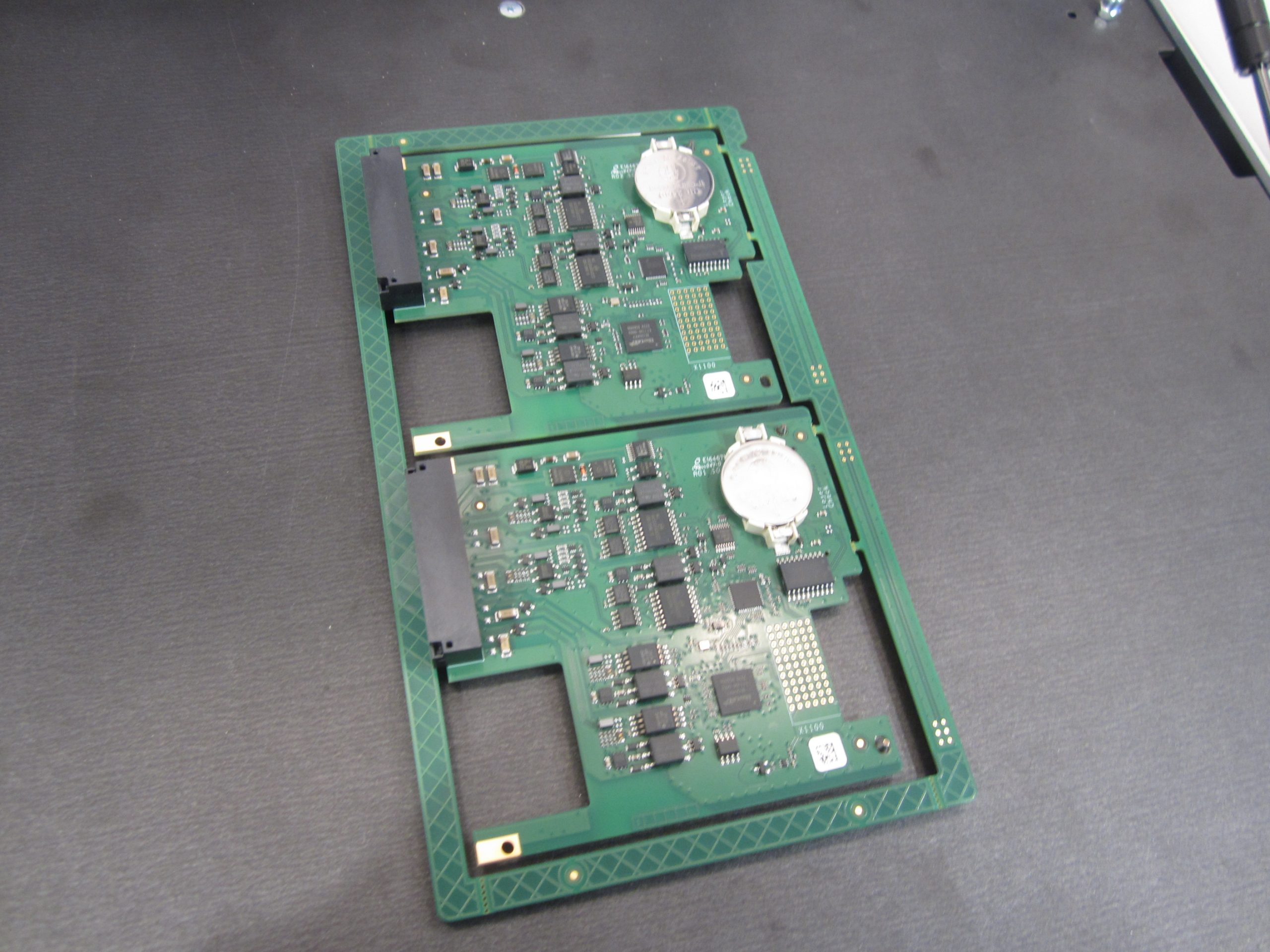

• Flexible Panel & Individual Testing: Highly adaptable design allows for the testing of single PCBAs or complete panels

• Universal Rear Interface Compatibility: From simple connector plate to a wide range of industry-standard mass interconnect systems, Like VPC, GenRad, ODU, Mac Titan, Ingun,. tc.

• Advanced Safety Features: Equipped with industry-standard operator safety mechanisms, including an safety switch and integrated solenoid locks, ensuring the fixture remains securely locked during active test cycles.

• Configurable Enclosure Volume: The bottom enclosure comes in four different heights to match your exact application needs, providing customizable space for internal instrumentation, auxiliary electronics, and complex wiring.

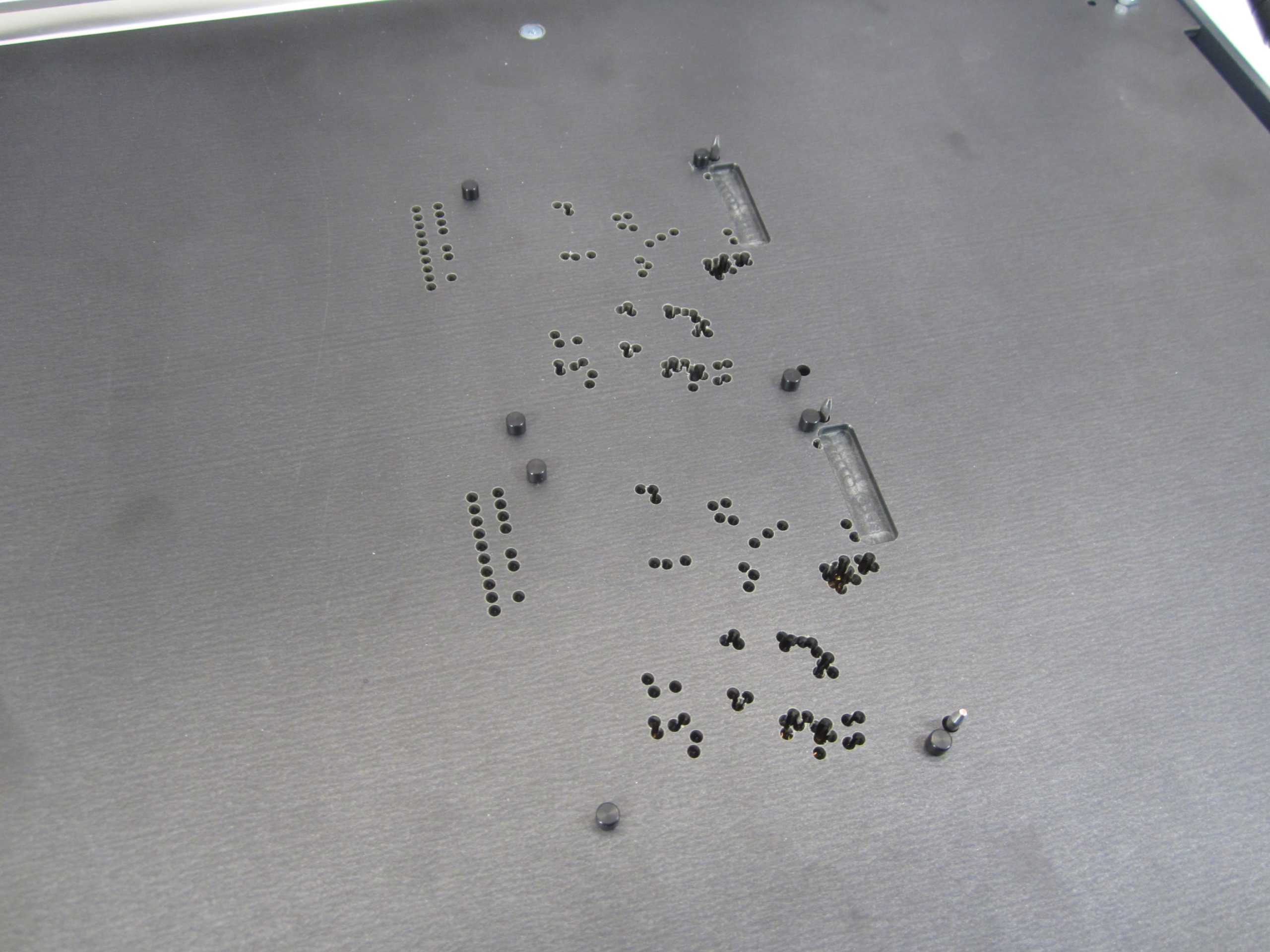

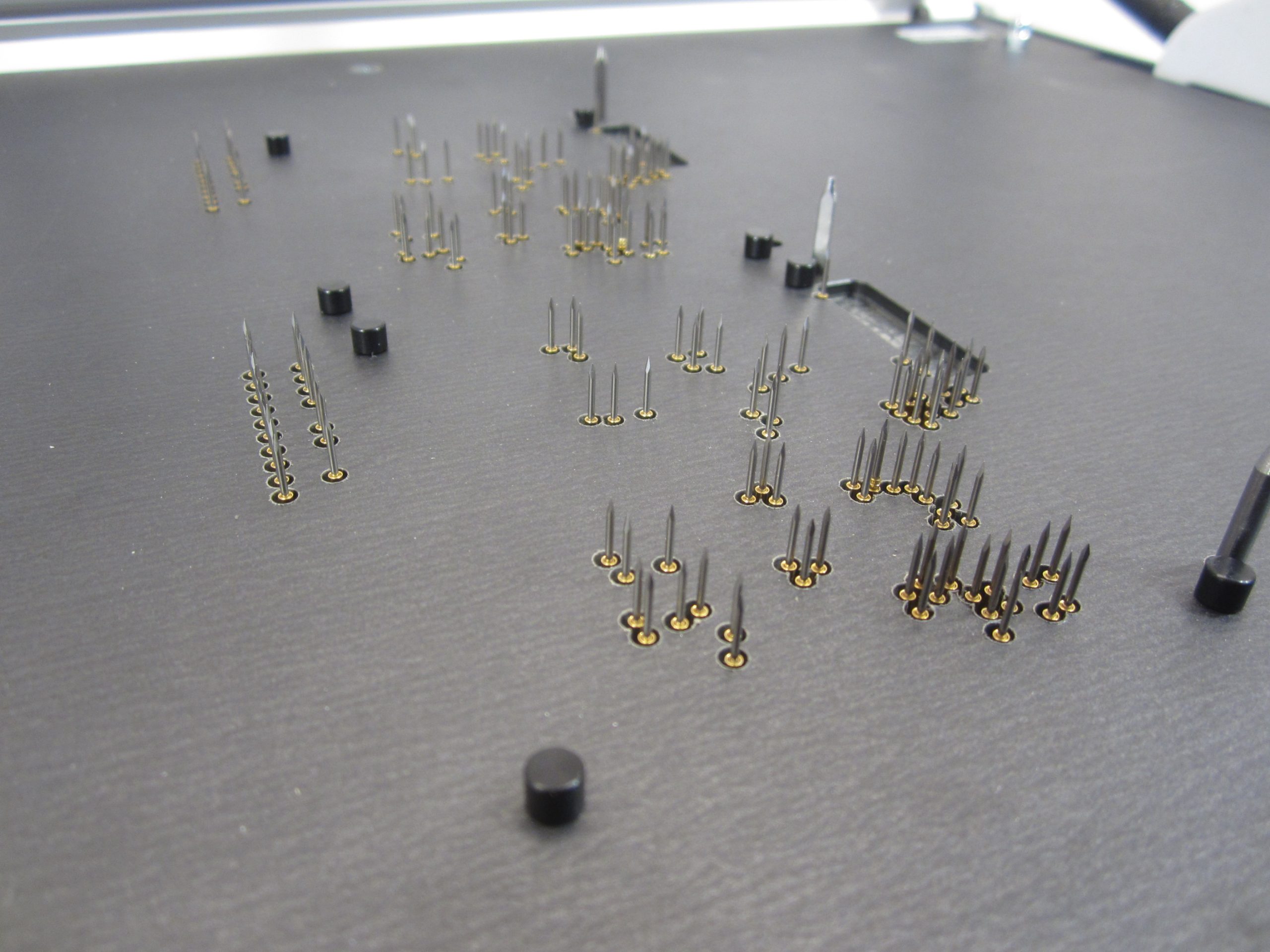

• Maximised Probe Area: The fixture handles up to PCB size of 440 mm x 300 mm and up to 500 standard spring loaded test probes.

• Advanced Contact Coplanarity: Engineered to give exact parallel movement of probe plate towards PCBA ensuring consistent testing results and low maintenance on test probes.

Applications

The M4430 fixture is an ideal FCT-fixture concept for low-to-medium volume electronics manufacturing.
