Description

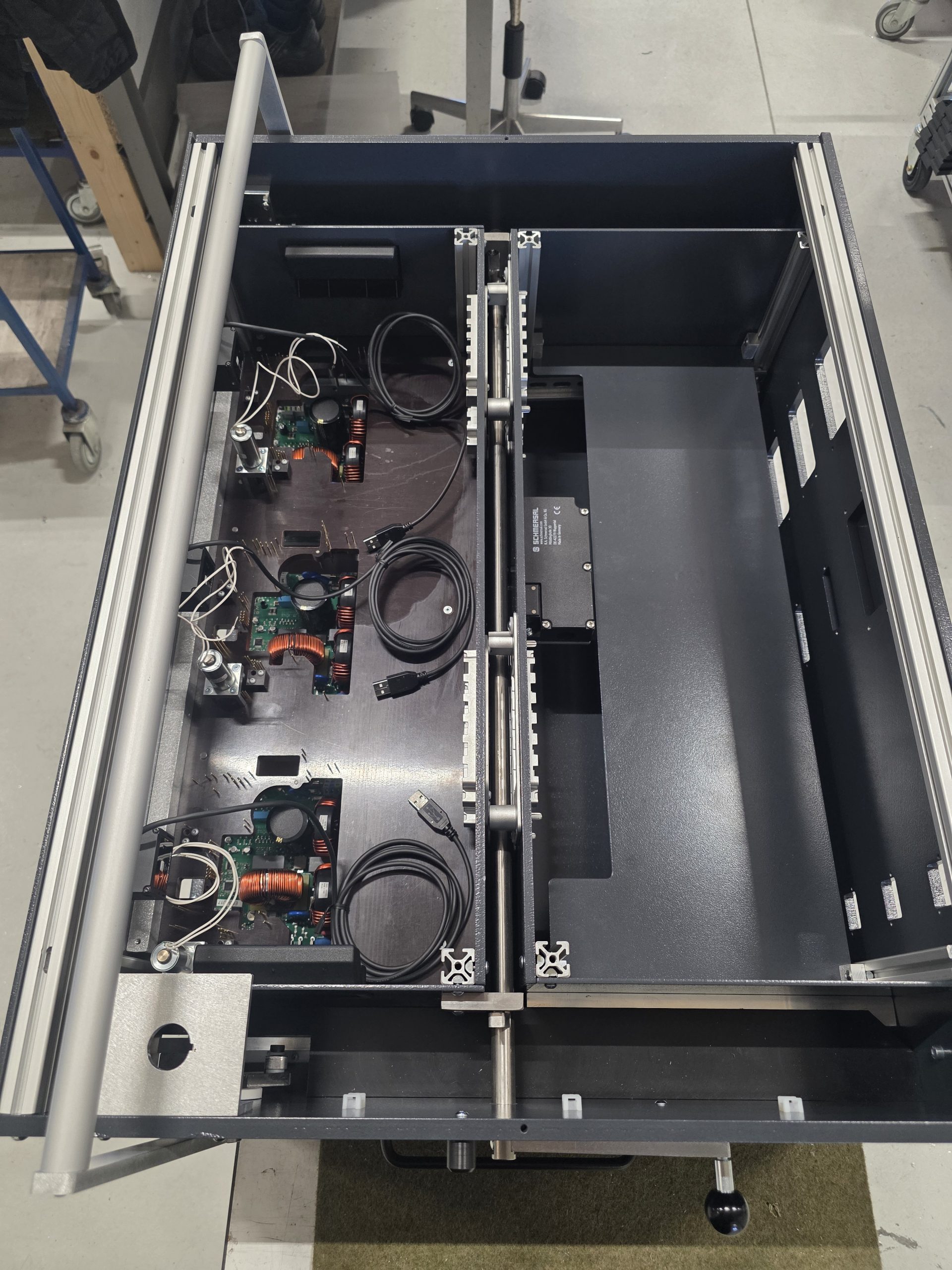

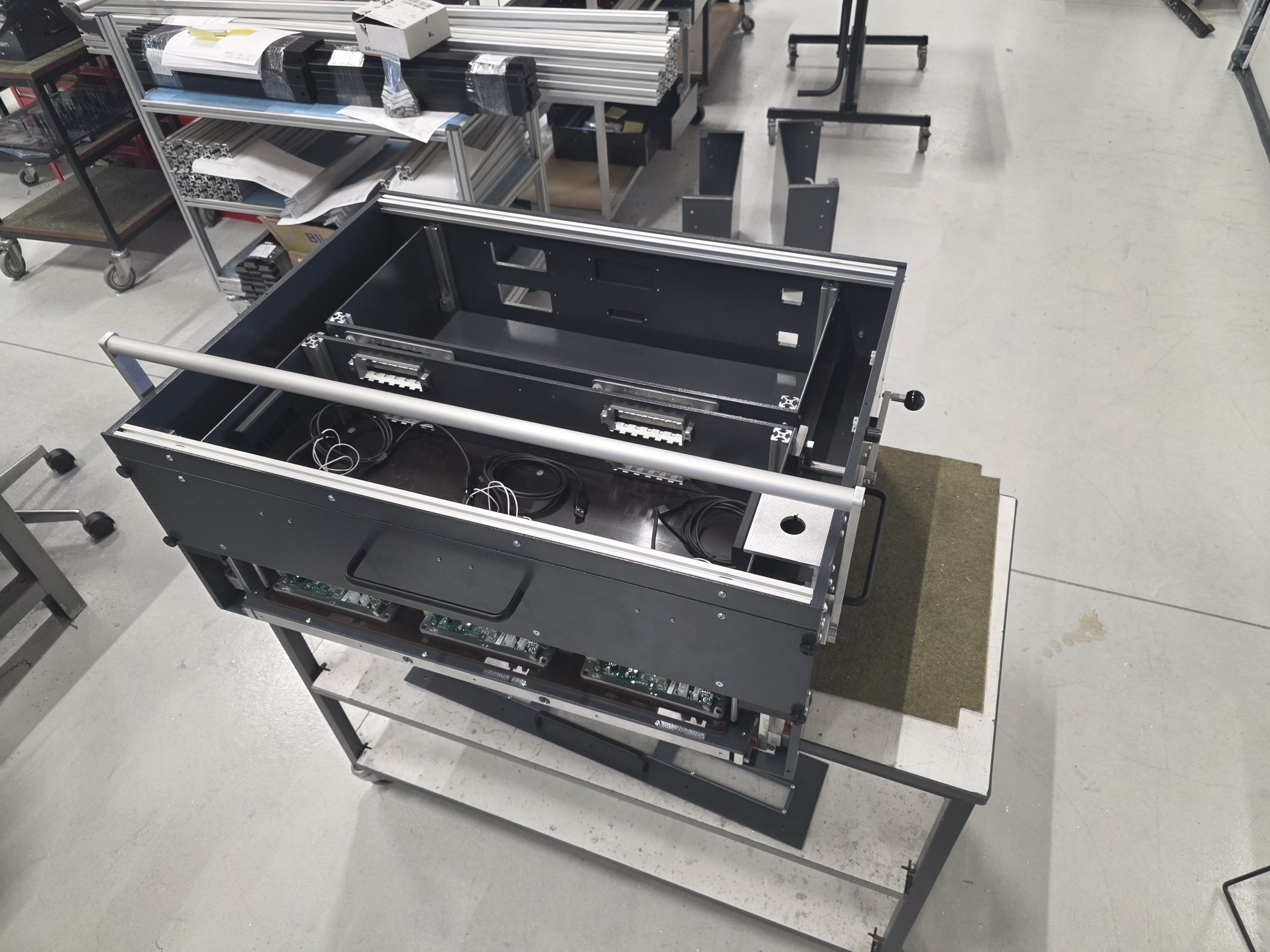

Built for high-mix electronics lines, this modular fixture separates expensive test instrumentation from product-specific tooling. Core electronics stay protected in a permanent enclosure, while top probe arrays and lower device beds swap out in minutes to retool for new PCB designs.
Key Features & Technical Highlights
-
Fast Tooling Swaps: Reconfigure top probe plates and device beds in minutes without replacing underlying measurement hardware.
-

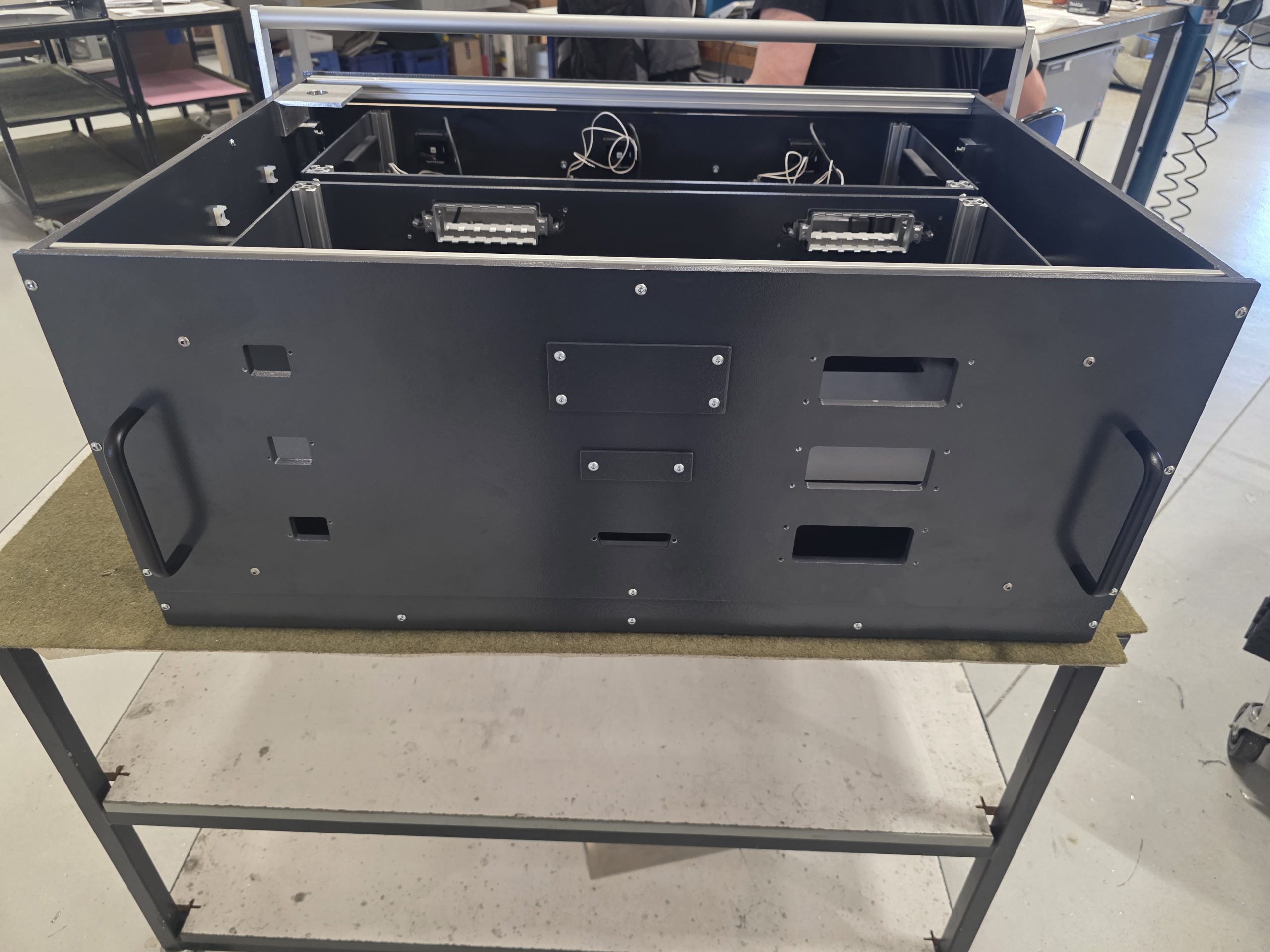

Shielded Electronics Enclosure: Protects internal instruments, routing boards, and power components from dust and shop-floor wear.
-
Interconnects: Heavy-duty multi-pin connectors maintain low signal loss and high cycle counts across frequent reconfigurations.
-
Simultaneous Testing: Tests more devices simultaneously to clear end-of-line bottlenecks.
-

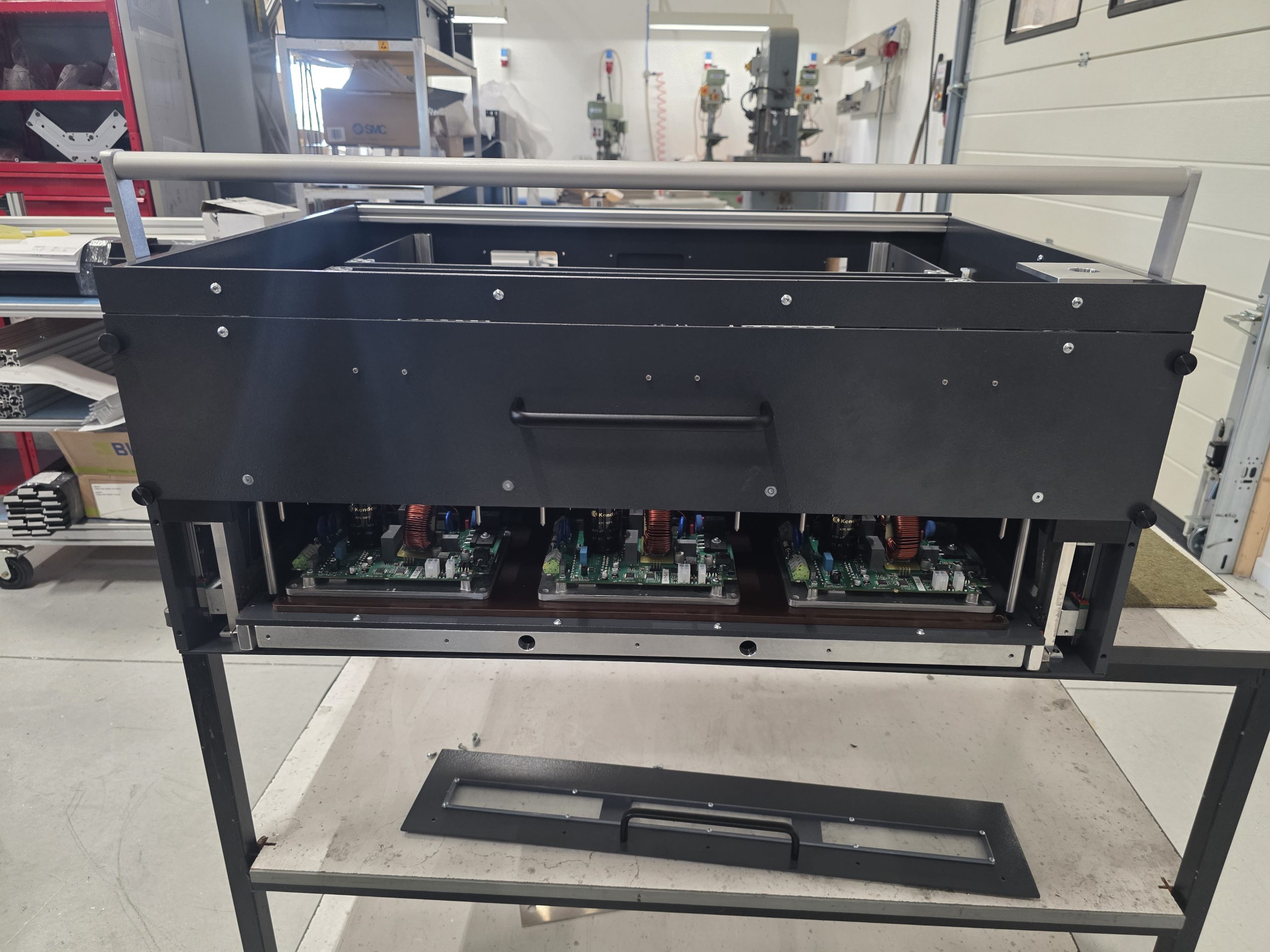

Dual-Motion Mechanical Drawer: Slides out horizontally for safe loading, then lifts vertically to engage overhead probes evenly.
-
Mechanical Safety Lock: Auto-latches at full compression to ensure constant, uniform contact pressure during test cycles.
Applications
Contract electronics manufacturing (EMS), automotive sensors, smart home gateways, and high-density industrial control modules needing fast line changeovers.
