Housing Disassembly Tool

Custom Pneumatic Housing Disassembly Tool is a specialised production-floor fixture engineered to open sealed plastic electronic enclosures for diagnostic troubleshooting and failure analysis. Once an electronic device is final-assembled—often via ultrasonic welding, heavy snap-fits, or structural adhesives—opening the housing manually to inspect a failure is difficult and hazardous. Traditional manual extraction methods using rotary saws or hand blades create dangerous flying debris, uneven cuts, and great mechanical shock that can easily destroy the internal PCBA, ruin the failure evidence, or injure the operator.

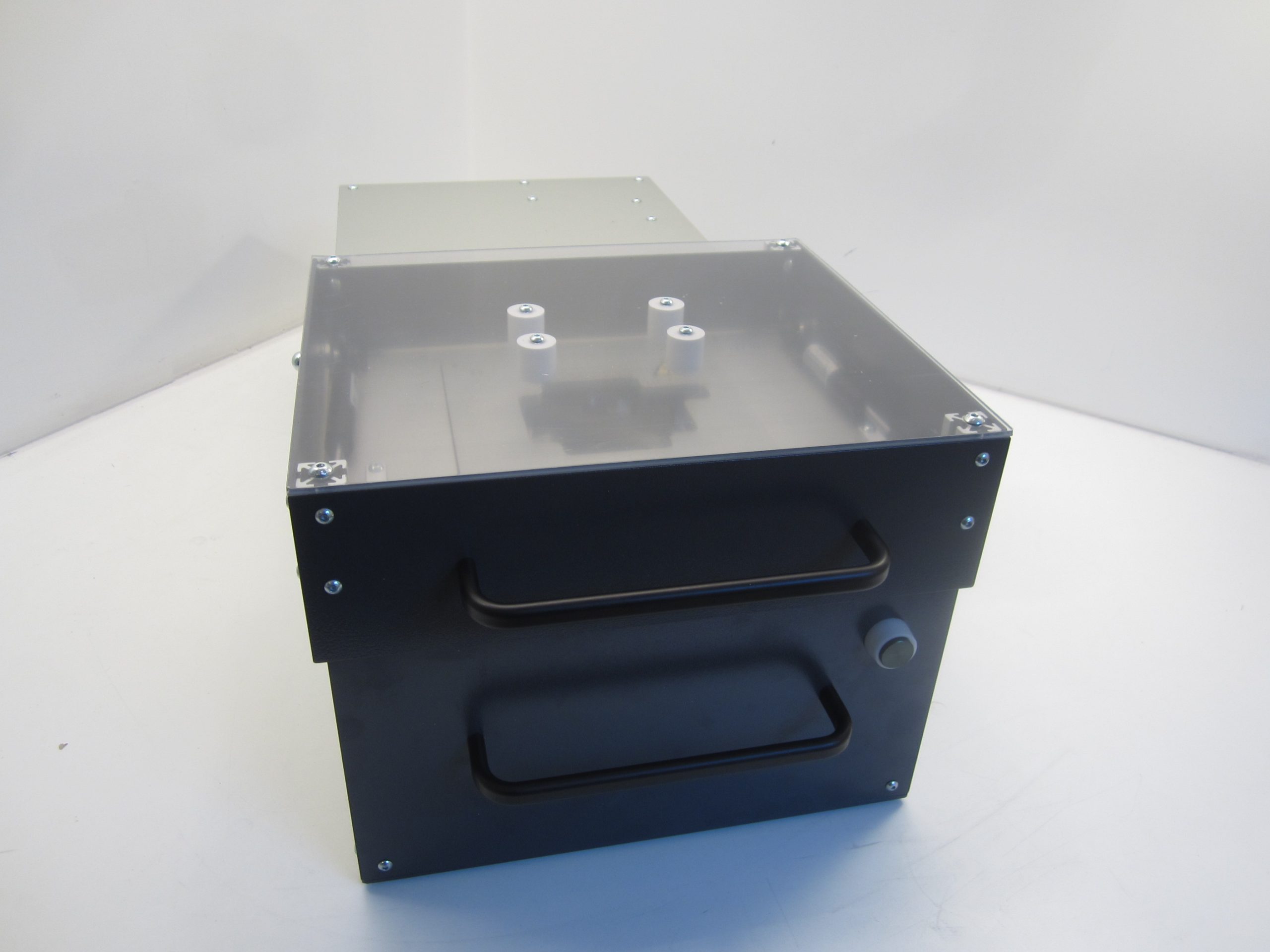

This benchtop solution provides a fast, perfectly repeatable, and highly controlled mechanical separation process. The device is placed into a custom-machined cavity where integrated pneumatic cutting jaws cleanly split or shear the plastic outer shell. To guarantee absolute workplace safety, the machine features a strict mechanical-pneumatic interlock: the powerful cutting cylinders are entirely isolated from the air supply and cannot be actuated unless the protective lid is completely closed.

Key Features & Technical Highlights

• Pneumatic Safety Interlock Logic: Outfitted with a fail-safe pneumatic control circuit that mechanically restricts air pressure to the cutting cylinders, ensuring zero actuation until the safety enclosure is fully down.

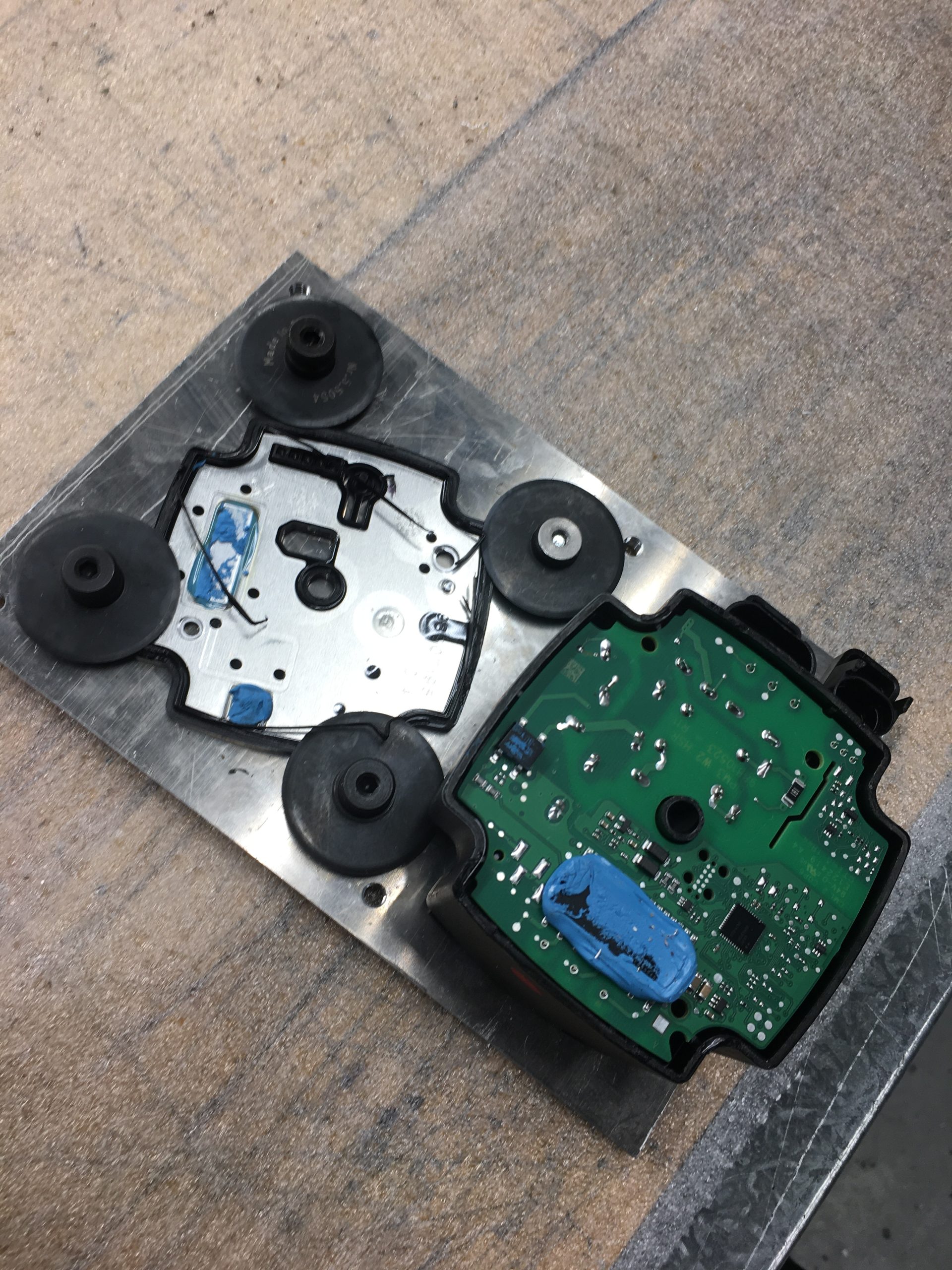

• Preservation of Failure Evidence: Delivers a smooth, high-force shearing stroke that minimises high-frequency vibration and structural flex, leaving the delicate internal PCBA pristine for accurate failure root-cause analysis.

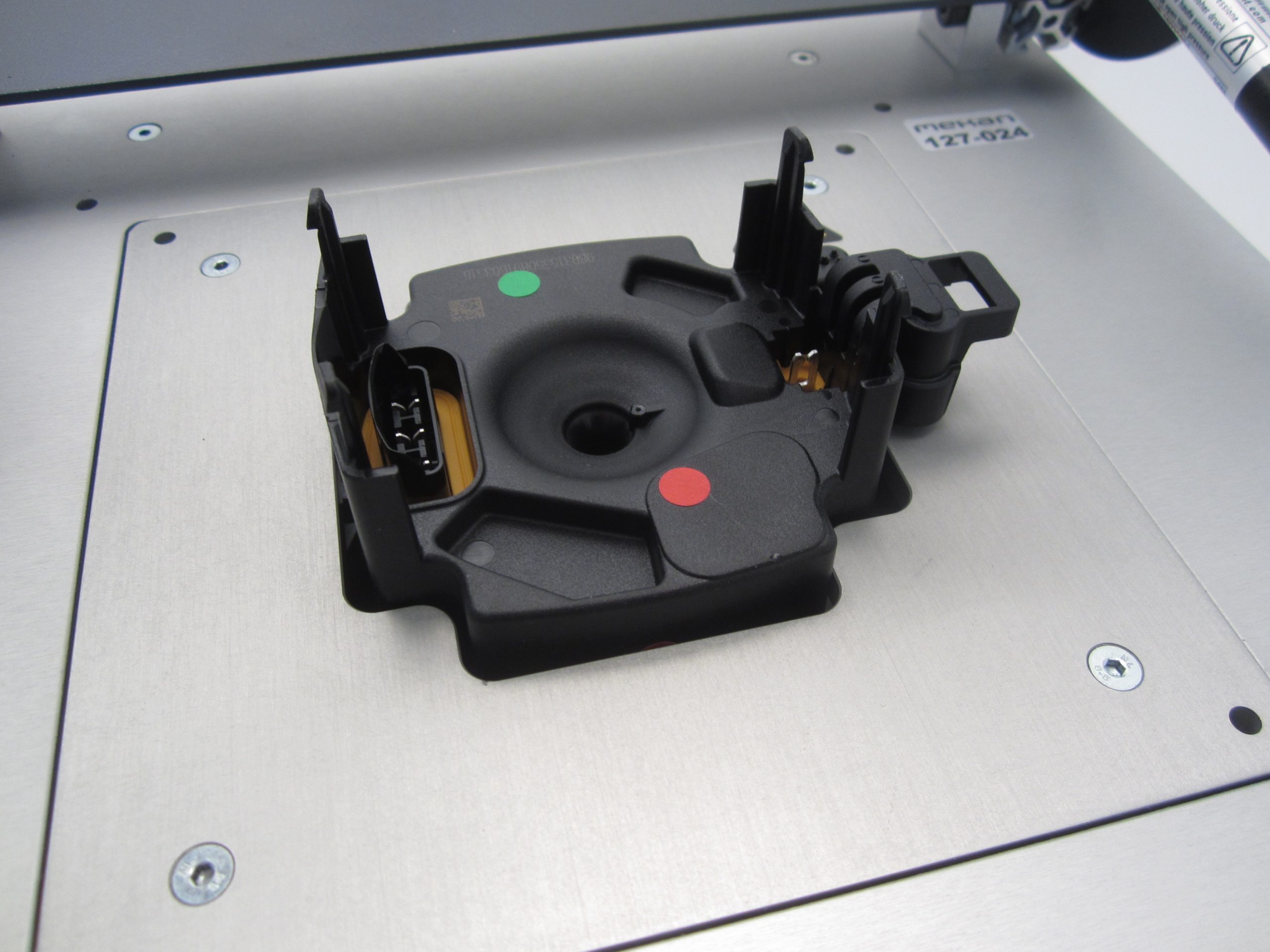

• Custom-Profiled Component Nesting: Features a drop-in, CNC-machined aluminium nesting bed contoured exactly to the geometry of your specific product housing, ensuring perfect alignment against the internal cutting dies.

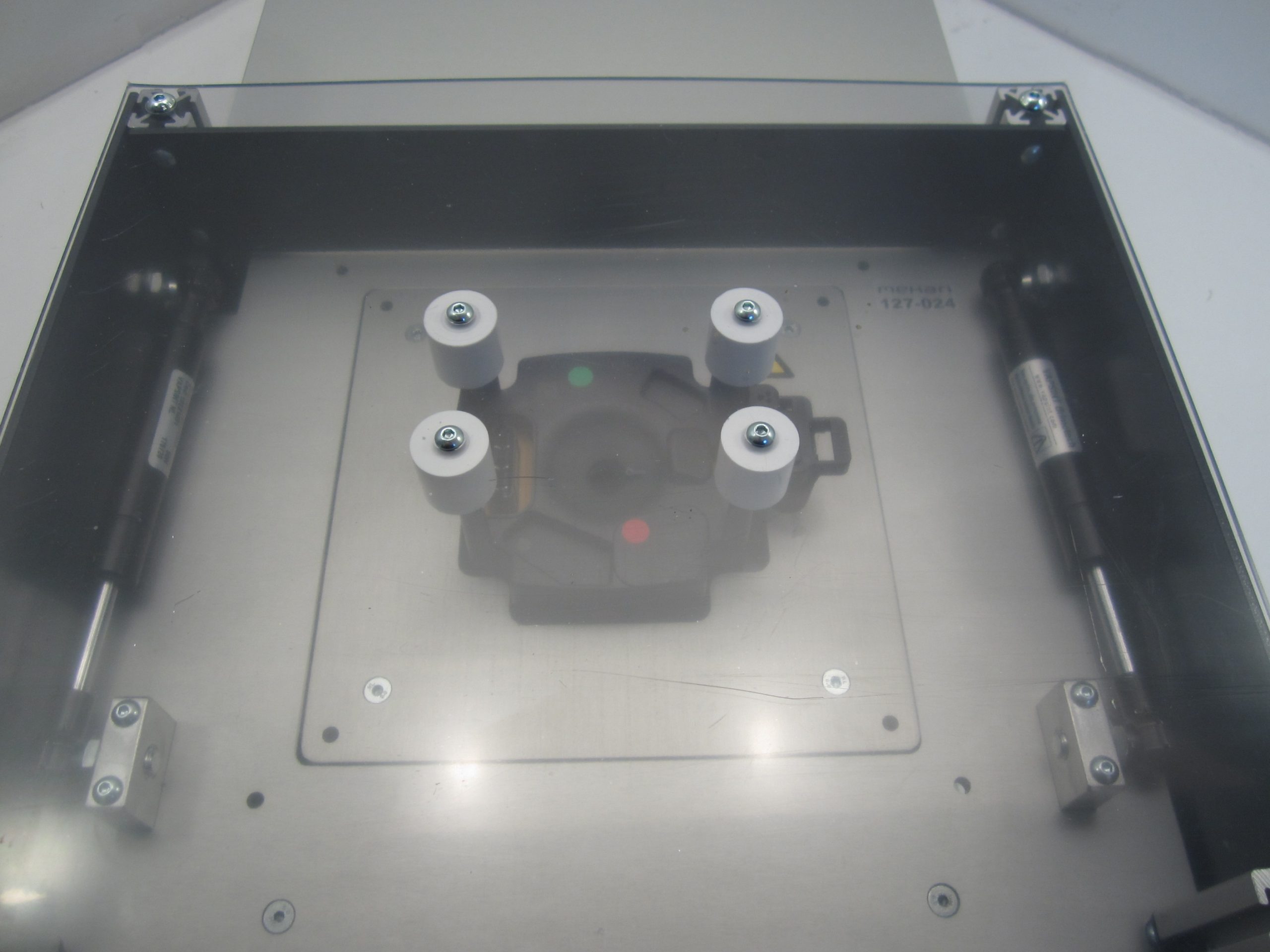

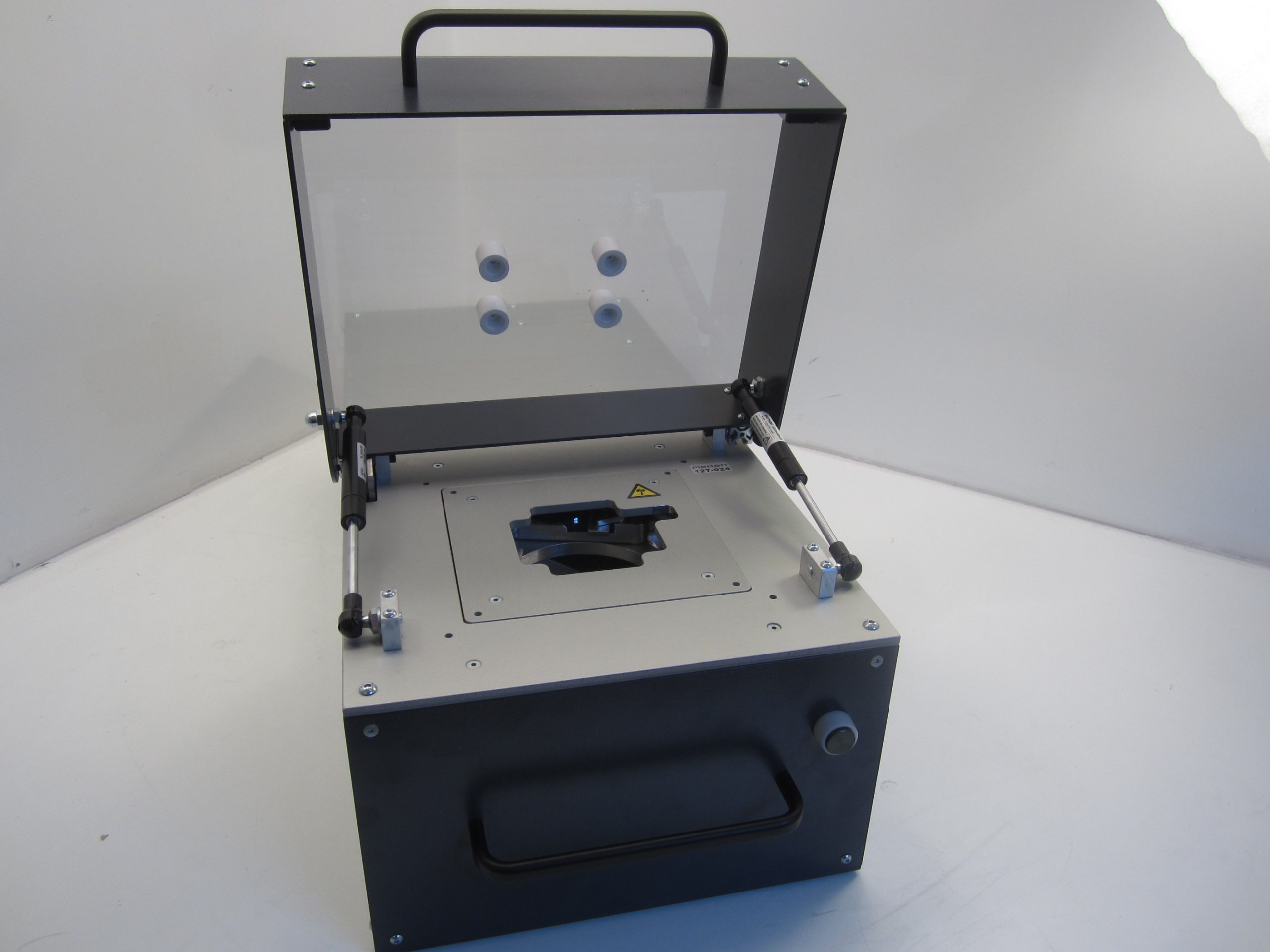

• Gas-Strut Assisted Safety Lid: Equipped with a rugged, high-visibility clear polycarbonate viewport supported by industrial gas shocks, providing complete protection from flying plastic shards while remaining effortless to open and close.

• Dual-Hand or Push-Button Activation Compatibility: Readily configures with multi-valve safety start logic, forcing operators to keep their hands entirely clear of the cutting zone during operation.

• Debris Containment Design: Keeps the workspace entirely free of fine plastic dust and loose shards, capturing all separation waste cleanly within the enclosed splitting chamber for easy disposal.

Applications

This custom disassembly platform is ideal for post-assembly quality control lines, warranty return centres, and engineering failure analysis laboratories handling plastic-enclosed automotive control units, smart sensors, smart meters, and rugged consumer electronics.
