Pneumatic snipping tool for SMT components

Pneumatic Snipping Tool is a high-reliability benchtop production fixture engineered to automate the precise cutting, trimming, and singulation of electronic component leads and circuit board tabs. Manual lead trimming or tab snapping using hand tools introduces uncontrolled mechanical shock, torsion, and physical stress, which frequently causes micro-cracking in fragile surface-mount devices (SMDs) like multilayer ceramic capacitors. This specialised fixture replaces manual clipping with a highly controlled, instantaneous pneumatic shearing action.

This robust system features an industrial pneumatic drive safely enclosed in a compact, workshop-ready chassis. By providing a perfectly uniform, high-velocity cut, it completely isolates the PCB substrate from structural stress, optimising manufacturing yields while ensuring operator safety and ergonomics.

Key Features & Technical Highlights

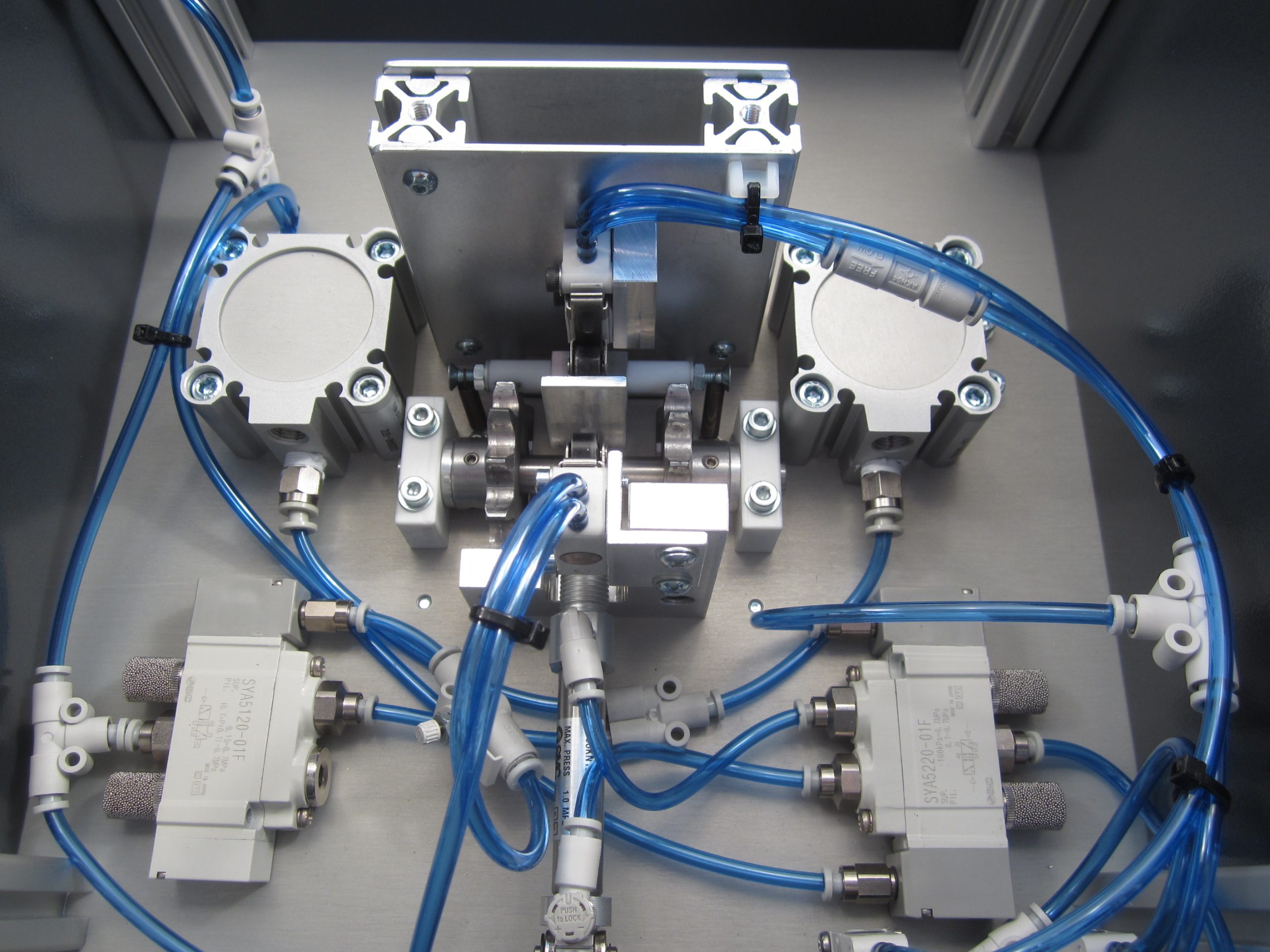

• Balanced Dual-Cylinder Actuation: Utilises synchronised, high-performance pneumatic cylinders to deliver an incredibly crisp, uniform, and high-velocity shearing force across heavy-duty component pins or panel borders.

• Low-Shock Component Protection: Engineered specifically to cleanly shear metal leads without propagating high-frequency shock waves or bending forces into the PCB, entirely preventing trace delamination and component micro-cracking.

• Integrated Scrap Collection System: Features a dedicated internal drop-chute that automatically channels trimmed leads and debris directly into a rugged, removable blue collection drawer located at the base of the unit, keeping the workspace free of conductive debris.

• Premium SMC Pneumatic Architecture: Outfitted with genuine industrial-grade SMC pneumatic manifold valves (including SYA series controllers) and heavy-duty, high-flex routing lines to guarantee leak-free operation across millions of cycles.

• Impact-Resistant Operator Safety Guard: Capped with a clear polycarbonate safety enclosure that grants the operator perfect visual clarity of the target area while fully capturing and blocking flying lead clippings or micro-particulates.

• Hardened Custom Shearing Dies: The internal cutting jaws are CNC-machined from ultra-hardened tool steel, tailored precisely to the spacing, diameter, and material hardness of your specific component pins or break-away PCB routing tabs.

Applications

This pneumatic snipping fixture is ideal for post-soldering lead trimming of mixed-technology PCBA boards, clean de-tabbing of small multi-panel SMT modules, custom connector pin truncation, and high-volume component preparation across the medical, automotive, and industrial sensor manufacturing sectors.
