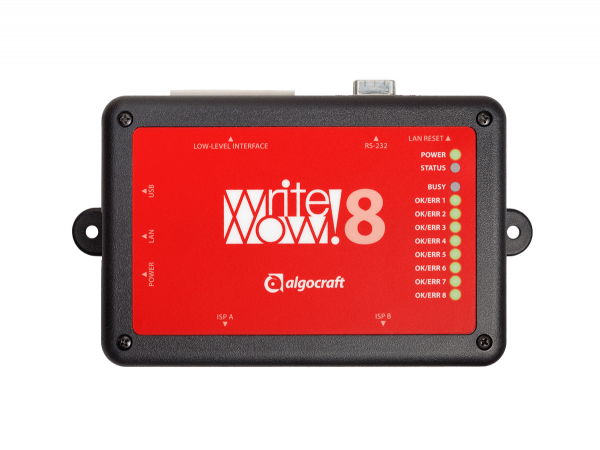

WriteNow! 8-Site In-System Programmer

WriteNow! 8-Site In-System Programmer

The 8-Site In-System Programmer is based on the proprietary WriteNow! Technology, the WriteNow! Series of In-System Programmers is a breakthrough in the programming industry.

WriteNow! Programmers

Based on the proprietary WriteNow! Technology, the WriteNow! Series of In-System Programmers is a breakthrough in the programming industry. The programmers support a large number of devices (microcontrollers, memories, CPLDs, and other programmable devices) from various manufacturers and have a compact size for easy ATE/fixture integration. They work standalone or connected to a host PC (RS-232, LAN, and USB connections are built-in), and are provided with easy-to-use software utilities.

Main Features
  • Ultra-fast, universal In-System Programmers
  • Industrial-grade reliability
  • Standalone operations or host controlled
  • Easy to install and to use
  • Compact size, fixture friendly
  • Programs Up to 8 Devices Simultaneously
Powerful and Easy-to-Use Software Utilities

The WriteNow! Series of In-System Programmers can be controlled by a host PC through simple, ASCII strings through a standard terminal interface. On top of that, a powerful user interface is provided which allows to setup and control the instruments through easy, graphical procedures. The WriteNow! Project Generator guides you through the creation and debugging of a programming Project in a few guided steps: device selection, source file creation, board parameter settings, programming flow options, upload, and run of the Project.

Features
  • Supports microcontrollers, serial and parallel memories, CPLDs, and other programmable devices
  • High-speed, parallel programming
  • Compact size (fixture friendly)
  • Standalone operations or host controlled
  • Designed for easy ATE interfacing
  • Robust and reliable
  • Supports multiple interfaces (JTAG, BDM, SPI, I2C, UART, etc.)
  • Memorizes data on a built-in memory card
  • Programmable power supply output (1.5-13V)
  • Programmable I/O voltage (1.6-5.5V)
  • High-speed I/O
  • USB, LAN, RS-232 (isolated), and low-level interface (isolated)
  • ISP I/O relay barrier (only available on the single-site model)
  • I/O protection
  • Wide range power supply (12-24V)
